INSTRUMENTATION SCREENED CABLES
Makcon Industries provides a wide range of cables suitable for process control and signal transmission. Instrumentation Signal Cables designed to provide additional protection against electrostatic noise, common mode noise magnetic and cross talk to achieve maximum reliability with low level clear signal transmission from transmitters to analog, Digital, Alarm Systems, PLCS, DCS, Field Bus, Load Cell etc. These cables are specially designed for intrinsically safe application, ensures error free data transfer between the interface module and all connected nodes. In the Industries related to Power Generation & Distribution, Petro-Chemical, Fertilizer Industries, Steel Plants, Oil Refineries, Aluminum Plants and other Engineering Industries, the process instrumentation plays a vital role in quality, productivity, economy and control of the entire plant.

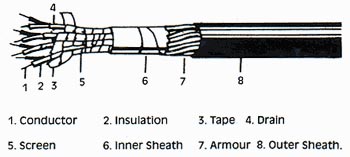

Construction:Conductor: Electrolytic Grade Copper, Flexible, Stranded, Solid, Bare or Annealed Tinned from 0.2 sq. mm to 2.5 sq. mm. Insulation: PVC, HR PVC, XLPE, PE, Zero Halogen Twisting: Pair, Triad, Quad,
Shielding or Screening is the most important part of Instrumentation Cables, which are provided by Aluminum - Mylar tape with copper drain wire or Tinned Copper Braided. Both the types have got their respective advantages. Shielding of either of the forms or even both the forms is provided in extreme situation depending upon the surrounding conditions & specific requirement.,
Inner Sheath: PVC, HR PVC, FR PVC, XLPE., PE, FRLS PVC, Zero Halogen
Outer Sheath: PVC, HR PVC, FRLS PVC, PE, Zero Halogen
Armouring of Galvanised Steel Wire/Flat Strip / Flexible Braiding is provided to prevent the Cables from mechanical stresses.
Applicable Standards: BS: 5308/I&II/86, IS: 5608/1991, IEC-754, 1/82 IEEE-383/1972

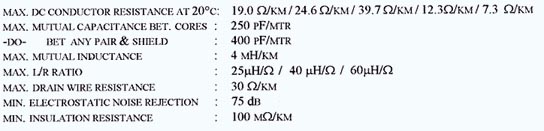

ELECTRICAL CHARACTERISTICS:
