Thermocouples & RTD
Specification
Fixed Male Fittings
Material : Stainless Steel, Brass for fixing for sensors to the matching female thread part on the process. Since the fittings is welded / brazed to the sensors tube, the immersion length of the sensors is fixed. Size Avaliable: 1/8" BSP / NPT To 1"
Process Connection
` Material : Stainless steel, brass for fixing of sensors to the matching female threaded part on the process. The fitting can be positioned anywhere along variable mmersion length. sizes avaliable:1/8" to 1" BSP / NPT, and other threads avaliable.
Adjustable Flange
Material : Stainless clambing sector provide immersion adjustment.
Fixed Flange
Material : Stainless steel for mounting thermocouples with fixed immersion length
Measuring Function
Ungrounded Junction
Specification
Mineral insulated(MI)thermocouples offer the following advantages over ceramic insulated thermocouples :
- Bendable, hence length upto 50 mtrs. Possible.
- Type of T/C - J & K
- Sheath dia (mm): 1.6/314,5/6
- Sheath material : SS316, Inconel 600.
- Single or Dual Elements are avaliable
- Temp. Max. 900° C to 1150° C.
Heavy Duty Ceramic insulated thermocouples. Avaliable in SS304, SS316, SS310, and inconel 600 sheaths, in straight & L shapes.

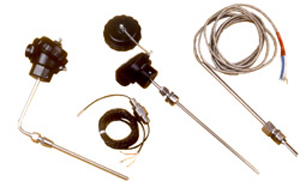

Product Details
-
Without fittings below head
With fixed male fittings below head
With adjustable male fittings
With adjustable flange
Teflon coatings : 0.6 mm thick
Ceramic insulated wire-in-bead construction with handfilled mgo powder temp.max 200° c, 500° flameproof head
Thermocouple krtd's with flame proof head
Quick disconnect thermocouple
Product Details
-
Thermocouple & rtd (3 wire) general purpose temperature. max 200°c to 600°c
Mineral insulated (mi) thermocouple
